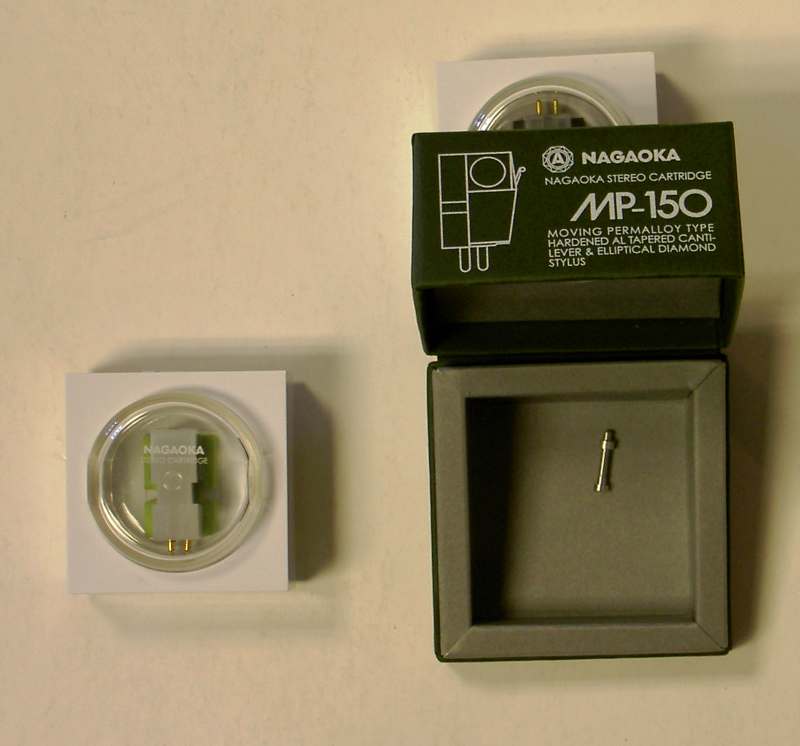

Nagaoka MP-150 Moving Magnet Cartridge

The Nagaoka MP-150 MP150 phono cartridge offers superior clarity, detail and dynamic contrast.

Nagaoka MP-150 MP150 Phono Cartridge Features:

SuperFine polished special elliptical diamond stylus
Powerful samarium cobalt magnet
Hardened low-mass, tapered aluminum alloy for very high fidelity
Carbon Fibre reinforced plastic shoe
Anti-ferro magnetic permalloy shield casing

Specifications

Type
Moving Magnet

Cantilever
Hardened, low-mass tapered cantilever

Stylus type
SuperFine elliptical diamond

Weight 6.5 grams
Output voltage
4.5mV (5cm/sec)

Frequency characteristic 20 - 20,000 Hz
Channel balance Better than 1.5 dB
Channel separation
Better than 24 dB at 1 kHz

Recommended loading
47,000 ohms

Dynamic Compliance
6.0 x 10-6 cm/dyne

Static Compliance
18 x 10-6 cm/dyne

Tracking force range
1.5 - 2.0 g

Break-in period
30 hours

Replacement stylus
Nagaoka JN-P150
