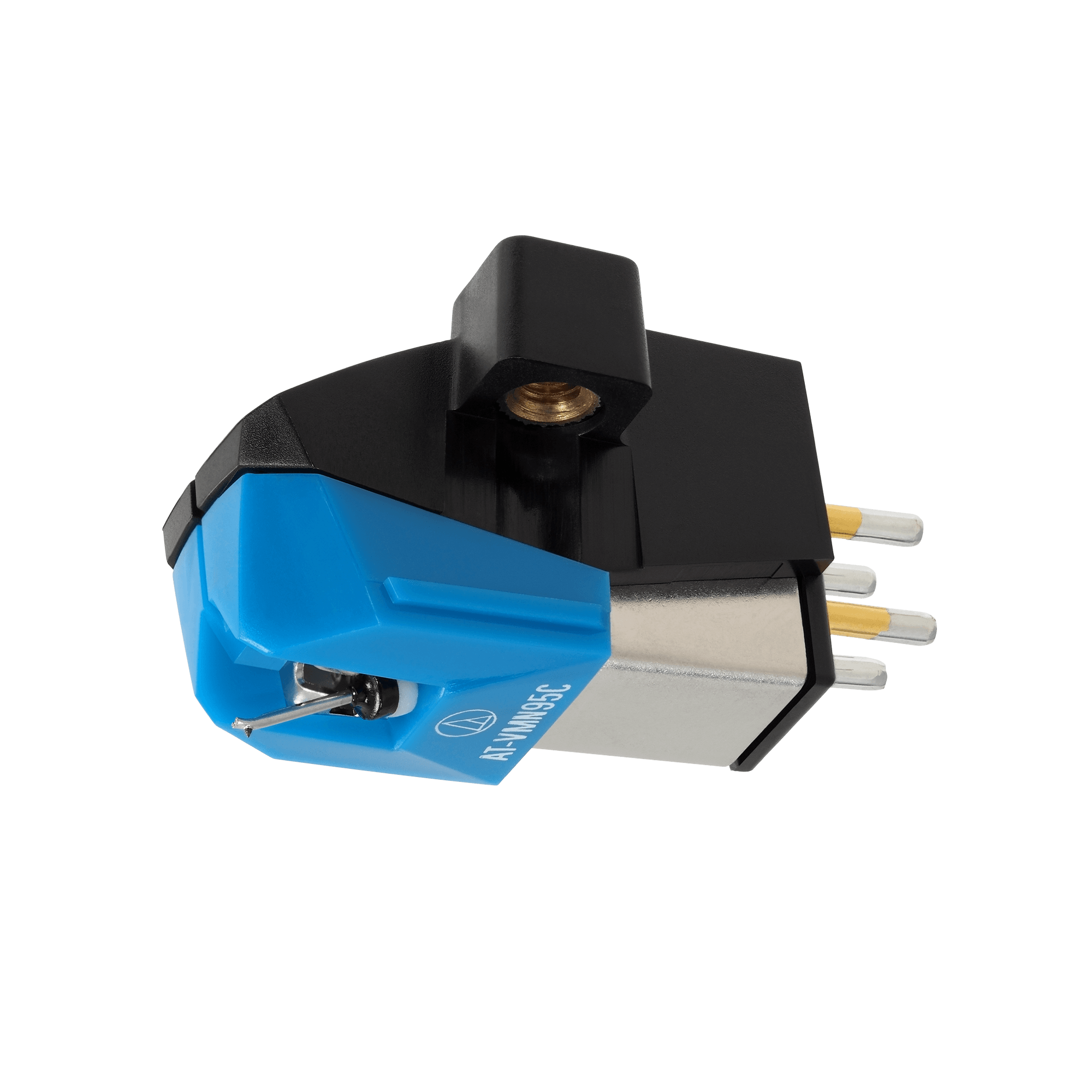

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Product Features
- VM95 Series dual magnet cartridge with 0.6 mil conical stylus
- Aluminium cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Product Specs
- Frequency Response 20-20,000 Hz
- Channel Separation 18 (dB at 1 kHz)
- Vertical Tracking Force 1.8-2.2g (2.0g standard)
- Stylus Construction Bonded round shank
- Recommended Load Impedance 47,000 ohms
- Output 4.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance 2.5 dB (1 kHz)
- Stylus Shape Stylus Shape
- Cantilever Aluminium pipe
- Mount Half-inch
- Replacement Stylus AT-VMN95C
- Coil Impedance 3.3 k ohms (1 kHz)
- DC Resistance 485 ohms
- Load Capacitance 100 to 200 pF
- Coil Inductance 550 mH (1 kHz)
- Vertical Tracking Angle 23°
- Dimensions 17.2mm H × 18.9mm W × 28.3mm D
- Weight 6.1 g
- Accessories Included Two 11mm installation screws, two 8mm installation screws, two washers
